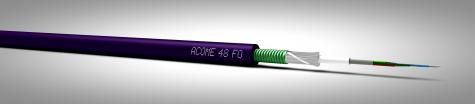

ACOPTIC - CCC1780
Steel armoured LSOH cables for nuclear installation
General characteristics
- Compact Tube: 6, 8 or 12 optical fibres under tearable thermoplastic sheathing
- Dry waterproofing: Water-swelling tape
- Central unit: Halogen-free rigid thermoplastic tube
- Flexible strength members: Glass yarns
- Armour: Copolymer steel
- Outer jacket: UV stabilised, mauve Low Smoke Zero Halogen (LSOH)
Protection against rodents IPA = **** (Significantly enhanced protection)
General
| Reference |
1431 series 12 fibres |
1421 series 24 fibres |
1421 series 36 fibres |
1425 series 48 fibres |
1415 series 72 to 144 fibres |
||||
| Nominal diameter (mm) | 13.2 | 13.6 | 15.5 | ||||||
| Nominal sheath thickness (mm) | 1.6 | ||||||||
| Maximum pulling force (N) | 1400 | 2000 | 2650 | ||||||
| Crush resistance (N/10 cm) | 3000 | ||||||||
| Minimum bending radius (mm) | 270 | 280 | 310 | ||||||
| Nominal weight (kg/km) | 218 | 220 | 222 | 237 | 295 | ||||
| Fire performance | Euroclass B2ca-s1a,d1,a1 C1 according to NFC 32070 2-2 Compliant to IEC 60331-25, 90 minutes |
||||||||
| Declaration of performance | 22CCU0010 | 21CCU0008 | 21CCU0009 | ||||||
| Temperature range | Transport and storage | -40 / +60 ° C | |||||||
| At the nstallation | -5 / +50 ° C | ||||||||
| In service | -30 / +60 ° C | ||||||||
| Standard packaging | 4000 m drums Single Mode fibre / 4200 m Multimode fibre | ||||||||
| Marking ( hot foil printing, white ) : ACOME CCC1781 fibre count & type - product reference - Euroclass B2ca-s1a,d1,a1 year and week of manufacture + metric | |||||||||
ACOME Protection Index against rodents IPA: ✭✭✭✭✩ = Very Reinforced Protection
Recommendations
Storage and installation
- The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
- The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.
