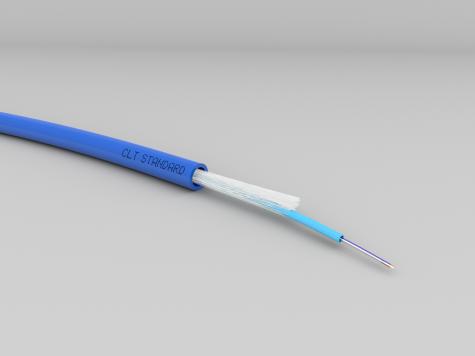

B1012A | "ACOLAN OPTICAL - CLT STANDARD ZH "
Benefits
- Flexible inner Tube
- Cable with ripcord
- Optimal design to facilitate preparation and access to fibers
Applications
- High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be used Indoor or Outdoor
General characteristics
ACOME Protection Index against rodents IPA: ✭✩✩✩✩ = Low Protection
Marking of outer jacket: ACOLAN CLT STD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm+ metric
|
Characteristics |
Value |
||
|
Z1313A |
Z1314A |
||
|
4 to 12FO |
16 to 24FO (bi-tubes) |
||
|
Temperature range NF EN 60794-1-2 F1 |
Transport and storage |
- 40°C to + 70°C |
|
|
At the installation |
-5°C to + 50°C |
||
|
In service |
-20°C to + 60°C |
||
|
Maximum pulling force (N) NF EN 60794-1-2 E1 |
2000 |
||
|
Crush resistance (N/10cm) NF EN 60794-1-2 E3 |
2000 |
||
|
Minimum bending radius (mm) NF EN 60794-1-2 E10 & E11 |
10xD |
||
|
Standard packaging |
2100m drums |
||
|
Nominal sheath thickness (mm) |
0,8 |
||
|
Nominal diameter (mm) |
6 |
7,2 |
|
|
Nominal weight (kg/km) |
40 |
52 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
| Bleu | Orange | Vert | Marron | Gris | Blanc | Rouge | Noir | Jaune | Violet | Rose | Turquoise |
Range
| Cable Content | Multimode 50/125 OM2 ACMM50 OM2 | Multimode 50/125 OM3 ACMM50 OM3 | Multimode 50/125 OM4 ACMM50 OM4 | Multimode 50/125 OM5 ACMM50 OM5 | Monomode 9/125* OS2 ACSM2-D METRO |
| 4 fibres | B1001A | B1010A | B1019A | B1028A | |
| 6 fibres | B1002A | B1011A | B1020A | B1257A | B1029A |
| 8 fibres | B1003A | B1012A | B1021A | B1030A | |
| 12 fibres | B1004A | B1013A | B1022A | B1258A | B1031A |
| 16 fibres | B1005A | B1014A | B1023A | B1032A | |
| 24 fibres | B1006A | B1015A | B1024A | B1259A | B1033A |
*9/125 : ITU-T G.652.D fibres
Norms and standards
Cable et fibers : EN 60793 / EN 60794-1
Wiring Systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
|
Number of fiber |
Euroclass |
Declaration of performance |
Standards |
|
4 to 24 fibers |
Dca-s2,d2,a2 |
17CLT0001 |
IEC 60332-1, EN 50399, IEC 60754-2 |
Scan the QR code to access declarations of performance on www.acome.fr.
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
