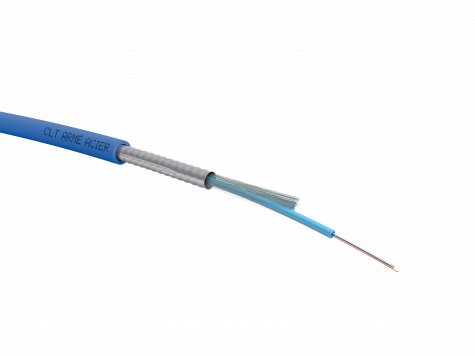

photo produit ACOME B1151A

B1151A | ACOLAN OPTICAL - CLT STAINLESS STEEL ZH "

Reference : B1151A
12xOM4 LOOSE IN/OUT ZH STAINLESS STEEL - BLUE

Benefits

  • Flexible inner Tube
  • Very Reinforced Protection against rodents
  • Optical design to facilitate preparation and access to fibers

Applications

  • High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
  • They can be use Indoor or Outdoor.

General characteristics

B1136A

ACOME Protection Index against rodents IPA:  ✭✭✭✭✩ = Very Reinforced Protection

Marking of outer jacket: ACOLAN CLT ARM ZH - fiber count & type - product reference Euroclass + (NF C 32070 C1) + DD/MM/YY + metric

GENERAL

Characteristics

Value

Z1027A

Z1301A

4 to 12FO

16 to 24FO

Temperature range

Transport and storage

- 40°C at + 70°C

At the installation

-5°C at + 50°C

In service

-40°C at + 70°C

Maximum pulling force (N)

2000

Crush resistance (N/10 cm)

5000

Minimum bending radius (mm)

150

Standard packaging

2100m drums

Nominal sheath thickness (mm)

1,85

1,1

Nominal diameter (mm)

8,7

9

Nominal weight (kg/km)

83

110

Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.



COLOR CODE
Bleu Orange Vert Marron Gris Blanc Rouge Noir Jaune Violet Rose Turquoise



Range

Cable content

Multimode

50/125 OM2

ACMM50 OM2

Multimode

50/125 OM3

ACMM50 OM3

Multimode

50/125 OM4

ACMM50 OM4

Single mode 9/125* OS2

ACSM2-D METRO

4 fibers

B1136A

B1142A

B1148A

B1154A

6 fibers

B1137A

B1143A

B1149A

B1155A

8 fibers

B1138A

B1144A

B1150A

B1156A

12 fibers

B1139A

B1145A

B1151A

B1157A

16 fibers

B1140A

B1146A

B1152A

B1158A

24 fibers

B1141A

B1147A

B1153A

B1159A

                                                                                                                    *9/125 : ITU-T G.652.D fibers

Norms and standards

GENERAL

logos cables de france      logo reach        logo ce



Cable and fibers : EN 60793 / EN 60794-1

Wiring system : EN 50173-1 / ISO 11801

Applications : IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI)  ATM (155, 622, …)

EUROCLASS

EUROCLASSE DCA - S2 D2 A2



FIRE BEHVIOUR

Europe

Number of fibers

Euroclass

Declaration of  performance

Standards

4 to 24 fibers

Dca-s2,d2,a2

17CLT0003

QR  IEC 60332-1, EN 50399

                 IEC 60754-2

Scan the QR code to access declarations of performance on www.acome.fr

For construction works which are not subject to reaction to fire requirements (depending on national regulation), we can provide on demand C1 classification certificate for cables from 4 to 12 FO (tests realized by an external laboratory - reference to the standard indicated on the marking of the cable). Please contact us for such requests.

Outside Europe

No flame propagation

IEC 60332-1

Low gas corrosivity

IEC 60754-2

Low toxicity

IEC 60754-1
