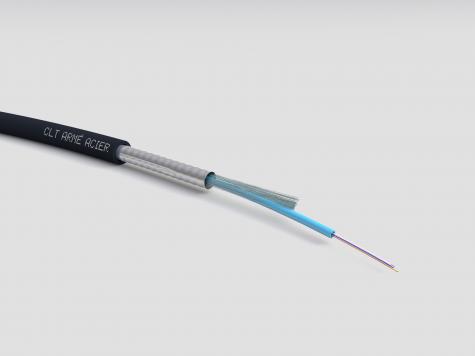

photo produit ACOME B1166A

B1166A | ACOLAN OPTICAL - CLT STAINLESS STEEL

Reference : B1166A
4xOM3 LOOSE OUTDOOR PE STAINLESS STEEL - BLACK

Benefits

  • Flexible inner Tube.
  • Very Reinforced Protection against rodents.
  • Optical design to facilitate preparation and access to fibers.

Applications

  • High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
  • They can be use Outdoor

General characteristics

B1160A

ACOME Protection Index against rodents IPA:  ✭✭✭✭✩ = Very Reinforced Protection

Marking of outer jacket: ACOLAN CLT ARM PE - fiber count & type - product reference + DD/MM/YY + metric

GENERAL



Characteristics

Value

Z1147A

Z1312A

4 to 12FO

16 to 24FO

Temperature range

Transport and storage

- 40°C at + 70°C

At the installation

-5°C at + 50°C

In service

-20°C at + 70°C

Maximum pulling force (N)

2000

Crush resistance (N/10 cm)

5000

Minimum bending radius (mm)

150

Standard packaging

2100m drums

Nominal sheath thickness (mm)

0,9

Nominal diameter (mm)

8,3

9

Nominal weight (kg/km)

74

92

Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.



COLOR CODE
Bleu Orange Vert Marron Gris Blanc Rouge Noir Jaune Violet Rose Turquoise



Range

Cable content

Multimode

50/125 OM2

ACMM50

Multimode

50/125 OM3

ACMM50

Multimode

50/125 OM4

ACMM50

Single mode

9/125* OS2

ACSM2-D METRO

4 fibers

B1160A

B1166A

B1172A

B1178A

6 fibers

B1161A

B1167A

B1173A

B1179A

8 fibers

B1162A

B1168A

B1174A

B1180A

12 fibers

B1163A

B1169A

B1175A

B1181A

16 fibers

B1164A

B1170A

B1176A

B1182A

24 fibers

B1165A

B1171A

B1177A

B1183A

*9/125 : fibres UIT-T G.652.D





Norms and standards

GENERAL

 logos cables de france    logo poe     logo reach       logo ce



STANDARDS

Cables and Fibers

: EN 60793 / EN 60794-1

Wiring systems

: EN 50173-1 / ISO 11801

Applications

: IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring  ANSI X3T9-5 (FDDI) ATM (155, 622, …)
