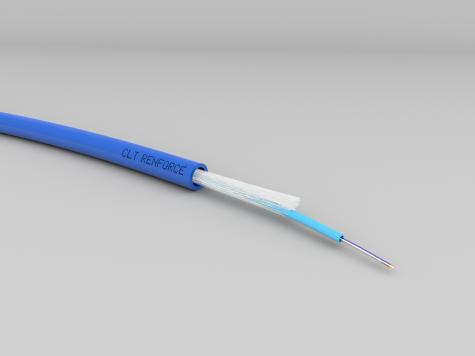

"ACOLAN OPTICAL - CLT REINFORCED ZH "
Benefits
- Cable with ripcord
- Reinforced Protection against rodents
- Optimal design to facilitate preparation and access to fibers
Applications
- High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be use Indoor or Outdoor
General characteristics
ACOME Protection Index against rodents IPA: ✭✭✭✩✩ = Reinforced Protection.
Marking of outer jacket: ACOLAN CLT RFD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm + metric.
|
Characteristics |
Value |
|
|
Z1319A |
||
|
48 FO (quadri-tube) |
||
|
Temperature range |
Transport and storage |
- 40°C to + 70°C |
|
At the installation |
-5°C to + 50°C |
|
|
In service |
-20°C to + 60°C |
|
|
Maximum pulling force (N) |
3000 |
|
|
Crush resistance (N/cm) |
300 |
|
|
Minimum bending radius (mm) |
10xD |
|
|
Standard packaging |
2100m drums |
|
|
Nominal sheath thickness (mm) |
1,5 |
|
|
Nominal diameter (mm) |
11 |
|
|
Nominal weight (kg/km) |
135 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
Range
|
Cable content |
Multimode 50/125 OM2 ACMM50 OM2 |
Multimode 50/125 OM3 ACMM50 OM3 |
Multimode 50/125 OM4 ACMM50 OM4 |
Single mode 9/125* OS2 ACSM2-D METRO |
|
48 fibers |
B1079A |
B1087A |
B1095A |
B1103A |
*9/125 : ITU-T G.652.D fibers
Norms and standards
| Cable and fibers | EN 60793 / EN 60794-1 |
| Wiring systems | EN 50173-1 / ISO 11801 |
| Applications | IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …) |
Europe
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
48 fibers |
Eca |
17 CLT0005 |
|
IEC 60332-1Scan the QR code to access declarations of performance on www.acome.fr
Hors Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
