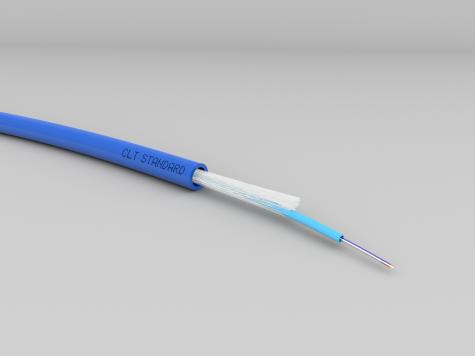

photo produit ACOME B1026A

B1026A | ACOLAN OPTICAL - CLT STANDARD ZH

Reference : B1026A
48xOM4 LOOSE IN/OUT ZH STANDARD DIELECTRICAL - BLUE

Benefits

  • Cable with ripcord
  • Optimal design to facilitate preparation and access to fibers

Applications

  • High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
  • They can be use Indoor or Outdoor

General characteristics

Coupe

ACOME Protection Index against rodents IPA:  ✭✩✩✩✩ = Low Protection

Marking of outer jacket: ACOLAN CLT STD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm + metric

GENERAL

Characteristics

Value

Z1316A

48FO

 (quadri-tube)

Temperature range

Transport and storage

- 40°C to + 70°C

At the installation

-5°C to + 50°C

In service

-20°C to + 60°C

Maximum pulling force (N)

2000

Crush resistance (N/10 cm)

2000

Minimum bending radius (mm)

10xD

Standard packaging

2100m drums

Nominal sheath thickness (mm)

0,8

Nominal diameter (mm)

9

Nominal weight (kg/km)

78

Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.

COLOR CODE
Bleu Orange Vert Marron Gris Blanc Rouge Noir Jaune Violet Rose Turquoise



Range

Cable Content  Multimode 50/125 OM2 ACMM50  Multimode 50/125 OM3 ACMM50 Multimode 50/125 OM4 ACMM50  Monomode 9/125*OS2 ACSM2-D METRO
48 fibers B1008A B1017A B1026A B1035A

*9/125 : ITU-T G.652.D fibres

Norms and standards

GENERAL

logos cables de france     logo reach       logo ce



Cable et fibers : EN 60793 / EN 60794-1

Wiring systems : EN 50173-1 / ISO 11801

Applications : IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI)  ATM (155, 622, …)



EUROCLASS

EUROCLASSE ECA



FIRE BEHAVIOUR

Europe

Number of fiber

Euroclass

Declaration of  performance

Standards

48 fibers

Eca

17CLT0004

IEC 60332-1

QRScan the QR code to access declarations of performance on www.acome.fr.

Hors Europe

No flame propagation

IEC 60332-1

Low gas corrosivity

IEC 60754-2

Low toxicity

IEC 60754-1
