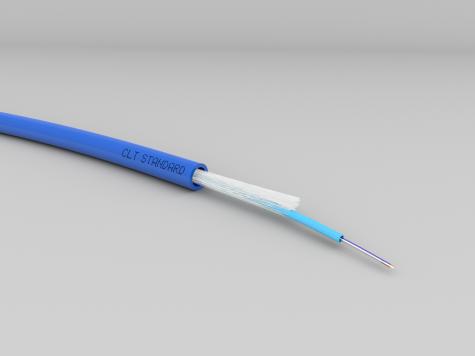

photo produit ACOME B1230A

B1230A | "ACOLAN OPTICAL - CLT STANDARD ZH "

Reference : B1230A
24xOM4 LOOSE IN/OUT ZH STANDARD DIELECTRICAL - BLUE

Benefits

  • Flexible inner Tube
  • Cable with ripcord
  • Optimal design to facilitate preparation and access to fibers

Applications

  • High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
  • They can be used Indoor or Outdoor

General characteristics

COUPE

ACOME Protection Index against rodents IPA:  ✭✩✩✩✩ = Low Protection

Marking of outer jacket: ACOLAN CLT STD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm+ metric

GENERAL

Characteristics

Value

Z1332A

24FO Unitube

Temperature range

NF EN 60794-1-2 F1

Transport and storage

- 40°C to + 70°C

At the installation

-5°C to + 50°C

In service

-20°C to + 60°C

Maximum pulling force (N)

NF EN 60794-1-2 E1

2000

Crush resistance (N/10 cm)

NF EN 60794-1-2 E3

2000

Minimum bending radius (mm)

NF EN 60794-1-2 E10 & E11

10xD

Standard packaging

2100m drums

Nominal sheath thickness (mm)

0,9

Nominal diameter (mm)

7

Nominal weight (kg/km)

52

Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.



COLOR CODE
Bleu Orange Vert Marron Gris Blanc Rouge Noir Jaune Violet Rose Turquoise



Range

Cable content

Multimode

50/125 OM2

ACMM50 OM2

Multimode

50/125 OM3

ACMM50 OM3

Multimode

50/125 OM4

ACMM50 OM4

Single mode 9/125* OS2

ACSM2-D METRO

24 fibers

B1228A

B1229A

B1230A

B1231A





Norms and standards

GENERAL

logos cables de france      logo reach       logo ce



Cable et fibers : EN 60793 / EN 60794-1

Wiring systems : EN 50173-1 / ISO 11801

Applications : IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI)  ATM (155, 622, …)

EUROCLASS

EUROCLASSE DCA - S2 D2 A2



COMPORTEMENT AU FEU

Europe

Number of fiber

Euroclass

Declaration of  performance

Standards

24 fibers

Dca-s2,d2,a2

17CLT0007

IEC 60332-1, EN 50399,

IEC 60754-2

QR word 57-59

Scan the QR code to access declarations of performance on www.acome.fr.

Outside Europe

No flame propagation

IEC 60332-1

Low gas corrosivity

IEC 60754-2

Low toxicity

IEC 60754-1
