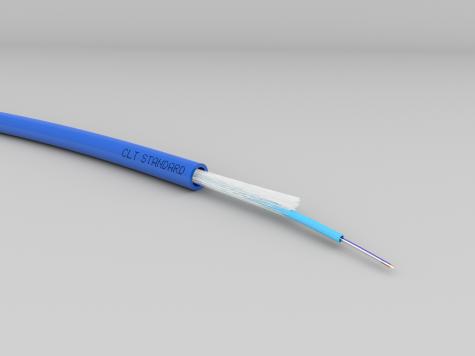

B1231A | "ACOLAN OPTICAL - CLT STANDARD ZH "
Benefits
- Flexible inner Tube
- Cable with ripcord
- Optimal design to facilitate preparation and access to fibers
Applications
- High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be used Indoor or Outdoor
General characteristics
ACOME Protection Index against rodents IPA: ✭✩✩✩✩ = Low Protection
Marking of outer jacket: ACOLAN CLT STD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm+ metric
|
Characteristics |
Value |
|
|
Z1332A |
||
|
24FO Unitube |
||
|
Temperature range NF EN 60794-1-2 F1 |
Transport and storage |
- 40°C to + 70°C |
|
At the installation |
-5°C to + 50°C |
|
|
In service |
-20°C to + 60°C |
|
|
Maximum pulling force (N) NF EN 60794-1-2 E1 |
2000 |
|
|
Crush resistance (N/10 cm) NF EN 60794-1-2 E3 |
2000 |
|
|
Minimum bending radius (mm) NF EN 60794-1-2 E10 & E11 |
10xD |
|
|
Standard packaging |
2100m drums |
|
|
Nominal sheath thickness (mm) |
0,9 |
|
|
Nominal diameter (mm) |
7 |
|
|
Nominal weight (kg/km) |
52 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
| Bleu | Orange | Vert | Marron | Gris | Blanc | Rouge | Noir | Jaune | Violet | Rose | Turquoise |
Range
|
Cable content |
Multimode 50/125 OM2 ACMM50 OM2 |
Multimode 50/125 OM3 ACMM50 OM3 |
Multimode 50/125 OM4 ACMM50 OM4 |
Single mode 9/125* OS2 ACSM2-D METRO |
|
24 fibers |
B1228A |
B1229A |
B1230A |
B1231A |
Norms and standards
Cable et fibers : EN 60793 / EN 60794-1
Wiring systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
|
Number of fiber |
Euroclass |
Declaration of performance |
Standards |
|
24 fibers |
Dca-s2,d2,a2 |
17CLT0007 |
IEC 60332-1, EN 50399, IEC 60754-2 |
Scan the QR code to access declarations of performance on www.acome.fr.
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
