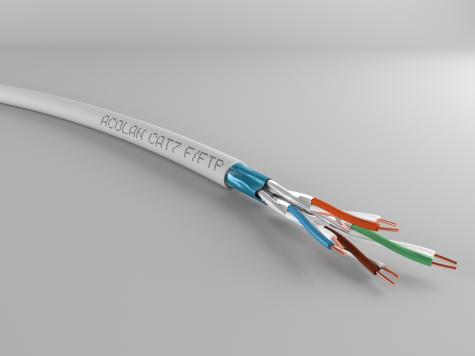

PHOTO PRODUIT ACOME R7485A-T1000

R7485A-T1000 | ACOLAN® COPPER

Reference : R7485A-T1000
F/FTP Cat.7 1000 MHz 4P LSOH-FR DRUM 1000m - GREEN

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the F class for the 10GBASE-T applications.
  • They are characterized of up to 1000 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.



General characteristics

Schéma coupe word-120-123



  1. Conductor

Solid annealed red copper wire, AWG 23

Foam skin Pe insulation Æ ≤ 1.45 mm



  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Stranding

4 pairs screening assembly

  1. Screen



Pet/Alu foil and tinned drain wire AWG26

  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen  - Flame Retardant



GENERAL

Designation

ACOLAN

Ref.

Colour

Diameter

Weight

Superior calorificcapacity

(PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

1000 FF 4P LSOH-FR *

R7485A

Green (RAL 6024)

7.50

55

550

0.153

95



1000 FFD 2x4P LSOH-FR



R7486A

Green (RAL 6024)

7.50x15.50

105

1125

0.312

190

*EC verified : structure 4P & 2x4P


MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 60 mm

Static (installed)

≥ 30 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C



ELECTRICAL

Electrical characteristics at 20°C (68°F)

            Characteristics

Values

Complete conductor resistance



≤ 146.4Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 Ω

Velocity

nominal

78 %

Coupling attenuation



≥ 70 dB

TYPE 1b

Transfer impedance

At     1 MHz

≤  30  mΩ / m

GRADE 2

At   10 MHz

≤  30 mΩ / m

At   30 MHz

≤   50 mΩ / m

At  100 MHz

≤  100 mΩ / m

Segregation classification acc. to EN 50174.2



‘’c’’



Norms and standards

GENERAL

logo poe ready    logo ce    EC



Applications
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 2,5G Base-T,
5G Base-T, 10G Base-T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 /  FDDI / ATM / RNIS

Cables
IEC 61156-5 ed.2 /  EN 50288-4-1

Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1 / EN 50173-5

Cabling system installation standard
EN 50174

Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC



EUROCLASS

EUROCLASSE DCA - S2 D2 A2



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Dca-s2,d2,a2

IEC 60332-1, EN 50399,

 IEC 60754-2

17FFTP003

Zone de Texte: www.acome.fr

2x4P

17FFTP007

Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1

Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R7485A – T500

Drum KT of 500 m

30 kg

---------------

18 drums

545 kg

----------------

R7485A-T1000

Drum  XL of 1000 m

58 kg

-----------------

4 drums

255 kg

-----------------

2x4P LSOH-FR

R7486A – T500

Drum XL of 500 m

58 kg

---------------

4 drums

245 kg

----------------

R7486A-T1000

Drum AC of 1000 m

115 kg

-----------------

4 drums

475 kg

-----------------
