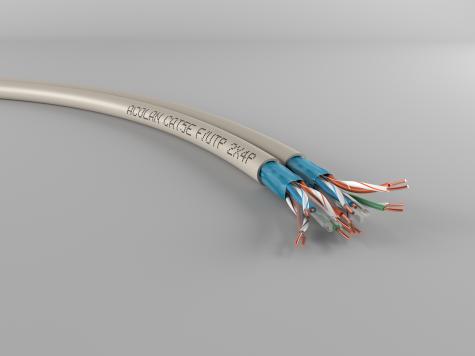

ACOLAN COPPER
Applications
- High speed data transmission cables are designed for horizontal cable distribution local computer networks.
- These cables are permitted the protocol supported by the class D
- They are characterized of up to 200 MHz.
- They are compatibles with PoE & PoE+, UPoE applications.
General characteristics
|
Solid annealed red copper wire, AWG 24 Colored polyethylene insulation Æ < 1.00 mm
|
|
Cable assembly in Twisted Pairs |
|
4 pairs assembly |
|
Pet/Alu foil and tinned drain wire AWG26
|
|
LSOH-FR : Low Smoke « Zero » Halogen - Flame Retardant |
|
Designation ACOLAN |
Ref. |
Colour |
Diameter |
Weight |
Superior calorific capacity (PCS) |
Max. pulling tension |
|
|
mm |
Kg/km |
MJ/km |
KWh/m |
N |
|||
|
200 FU 4P LSOH-FR |
M4969A-S |
Ivory (RAL 9001) |
5.80 |
36 |
422 |
0,117 |
80 |
|
Characteristics |
Values |
|
|
Bending radius |
Dynamic (installation) |
³ 50 mm |
|
Static (installed) |
³ 25 mm |
|
|
Temperature range |
In service |
- 20°C at + 60°C |
|
At the installation |
0°C at + 50°C |
|
|
Transport and storage |
0°C at + 50°C |
|
|
Characteristics |
Values |
||
|
Complete conductor resistance |
|
£ 190 W / km |
|
|
Resistance unbalance |
|
£ 2 % |
|
|
Dielectric strengh |
Continuous current |
1kV during 1 minute = no breakdown |
|
|
Insulation resistance |
(500 V) |
³ 5000 MW . km |
|
|
Capacitance unbalance |
Real-ground |
£ 1200 pF / km |
|
|
Characteristic impedance |
at 100 MHz |
100 ± 5 W |
|
|
Velocity |
nominal |
78 % |
|
|
Coupling attenuation |
|
³ 80 dB |
TYPE 2 |
|
Transfert impedance |
at 1 MHz |
£ 50 mW / m |
GRADE 2 |
|
at 10 MHz |
£ 50 mW / m |
||
|
at 30 MHz |
£ 100 mW / m |
||
|
at 100 MHz |
£ 200 mW / m |
||
|
Segregation classification acc.to En 50174.2 |
|
‘’c’’ |
|
Norms and standards
Applications
IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T ;
IEEE 802.3 af (PoE) / 802.3 at (PoE+)
IEEE 802.5 / FDDI / ATM / RNIS
Cables
IEC 61156-5 / EN 50288-2-1
Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1 / TIA-568.2-D
Cabling system installation standards
EN 50174
Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC
Europe
|
Type |
Euroclass |
Standards |
Declaration of performance |
|
|
4P |
Eca |
IEC 60332-1 |
16FUTP001 |
|
Outside Europe
|
No flame propagation |
IEC 60332-1 / EN 60332-1 |
|
Low smoke opacity |
IEC 61034-2 / EN 61034-2 |
|
Low gas corrosivity |
IEC 60754-2 / EN 60754-2 |
|
Low toxicity |
IEC 60754-1 / EN 60754-1 |
Recommendations
|
References |
Individual |
Expedition |
||||
|
Type |
Weight |
EAN code |
Quantity |
Weight |
EAN code |
|
|
M4969A – SC100 |
Coil of 100 m |
3.70 kg |
3700223681372 |
60 coils |
240 kg |
3700223681389 |
|
M4969A – SB305 |
Acopack of 305 m |
11.7 kg |
3700223681396 |
24 boxes |
302 kg |
3700223681402 |
|
M4969A – ST500 |
Drum of 500 m |
20 kg |
3700223681419 |
18 drums |
382 kg |
3700223681426 |
|
M4969A – ST1000 |
Drum of 1000 m |
38 kg |
3700223681433 |
12 drums |
476 kg |
3700223681440 |
