Product

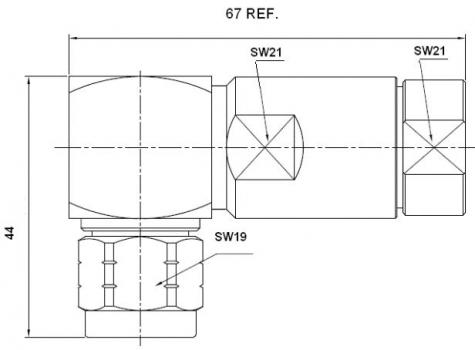

General characteristics
|
Inner Conductor: |
Silver - plated bronze |
|
Dielectric: |
PTFE |
|
Body: |
Copper alloy - plated brass |
|
Clamping and Coupling Nut: |
Nickel - plated brass |
|
Clamping Nut Waterproof: |
Silicone O-ring |
| Coupling Waterproof: | Silicone gasket |
MECHANICAL & ENVIRONMENTAL
| Interface Durability: | 500 cycles | |
| Temperature: | Operating | -40°C / +85°C |
| Storage | -40°C / +85°C | |
| Weight: | 225 g | |
| Waterproof Index: | IP68 | |
| RoHS Compliance: | Yes | |
ELECTRICAL
| Impedance: | 50 ± 1 Ω |
| Operating Frequency Band: | DC ~ 3GHz |
| VSWR: | 0~2.2 GHz : ≤ 1.10 |
| 2.2~3 GHz : ≤ 1.135 | |
|
3rd Order Passive Intermodulation, Measured In Swept Frequency Mode with 2x20W carriers, F ≤ 1880 MHz: |
≤ -145 dBc |
| Voltage Test (at sea level): | 2000 V eff / 50 Hz |
| Operating Voltage (at sea level): | 1300 V eff / 50 Hz |
| Insulation Resistance: | ≥ 5000 MΩ |
| Contact Resistance: | Inner contact: ≤ 1.5 mΩ |
| Outer contact: ≤ 1.0 mΩ |
Range
Compatibility with ACOME HPL 50 -1/2SF
M2839,M2830,M5308
Test Methods: IEC 61169, IEC 62037, IEC 60529
Recommendations
INSTALLATION INSTRUCTION
ANM - C0043E
