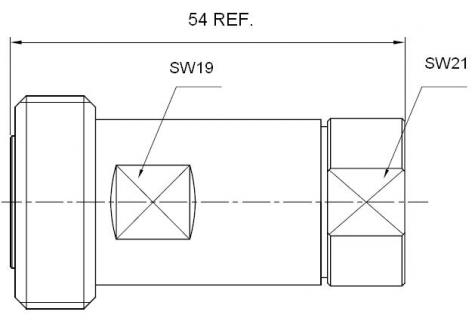

photo produit ACOME C0032E

C0032E | HYPERCELL

Reference : C0032E
HPL 7/16 Din female connector

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring





MECHANICAL & ENVIRONMENTAL
Interface Durability: 500 cycles
Temperature: Operating -40°C / +85°C
Storage -40°C / +85°C
Weight: 113 g
Waterproof Index: IP68
RoHS Compliance: Yes



ELECTRICAL
Impedance: 50 ± 1 Ω
Operating Frequency Band: DC ~ 3GHz
VSWR: 0 ~ 3 GHz: ≤ 1.10

3rd Order Passive Intermodulation, Measured In Swept

Frequency Mode with 2x20W carriers, F ≤ 1880 MHz:

 ≤ -158 dBc
Voltage Test (at sea level): 2000 V eff / 50 Hz
Operating Voltage (at sea level): 1300 V eff / 50 Hz
Insulation Resistance: ≥ 10000 MΩ
Contact Resistance: Inner contact: ≤ 0.4 mΩ
Outer contact: ≤ 1.5 mΩ

Range

Compatibility with ACOME HPL 50 -1/2SF

M2839,M2830,M5308

Test Methods: IEC 61169, IEC 62037, IEC 60529
