C2422E | HYPERCELL

Reference : C2422E

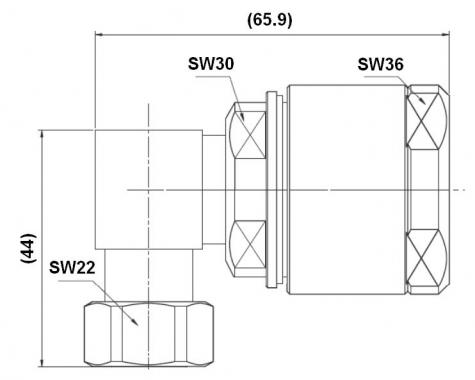

HPL 4.3-10 male elbow connector

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring

Coupling Waterproof: Silicone O-ring



MECHANICAL & ENVIRONMENTAL
Interface Durability: >100 cycles
Temperature: Operating -40°C / +85°C
Installation -25°C / +55°C
Storage -50°C / +85°C
Weight: 257 g
Waterproof Index: IP68
RoHS Compliance: Yes



ELECTRICAL
Impedance: 50 ± 1 Ω
Operating Frequency Band: DC ~ 4 GHz
VSWR: DC ~ 2.2 GHz: ≤ 1.10
2.2 ~ 3 GHz: ≤ 1.135
3 ~ 4 GHz: ≤ 1.20

3rd Order Passive Intermodulation, Measured In Swept

Frequency Mode with 2x20W carriers, F ≤ 1880 MHz:

 ≤ -160 dBc
Voltage Test (at sea level): 2000 V eff / 50 Hz
Operating Voltage (at sea level): 1400 V eff / 50 Hz
Insulation Resistance: ≥ 5000 MΩ
Contact Resistance: Inner contact: ≤ 1.0 mΩ
Outer contact: ≤ 1.0 mΩ



Range

Compatibility with ACOME HPL 50 50 -7/8

M5407, M5422, M5510,M5430,M5436,M5643,M5645

Test Methods: IEC 61169-54, IEC 62037-3, IEC 60529

Recommendations

INSTALLATION INSTRUCTION

ANM – C2422E
