C0057E | HYPERCELL

Reference : C0057E
HPL N Female connector

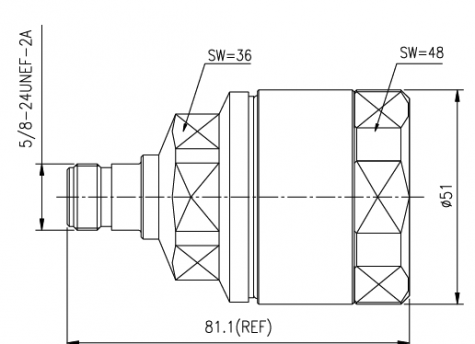

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring



MECHANICAL & ENVIRONMENTAL
Interface Durability: 500 cycles
Temperature: Operating -40°C / +85°C
Storage -40°C / +85°C
Weight: 340 g
Waterproof Index: IP68
RoHS Compliance: Yes





ELECTRICAL
Impedance:   50 ± 1Ω
Operating Frequency Band:   DC ~ 3.6GHz
VSWR: DC~3GHz ≤ 1.10
3~4GHz ≤ 1.20
3rd Order Passive Intermodulation, Measured In Swept Frequency Mode with 2 × 20W carriers,
F ≤ 1880 MHz:
Static: ≤ -155 dBc
Dynamic: ≤ -145 dBc
Voltage Test (at sea level):   2500 V eff / 50 Hz
Operating Voltage (at sea level):   1500 V eff / 50 Hz
Insulation Resistance:   ≥5000 MΩ
Contact Resistance: Inner contact: ≤ 1.5 mΩ
Outer contact: ≤ 1.0 mΩ



Range

Compatibility with ACOME HPL 50 -1-1/4

M2937, M2938, M5358, M5400

Test Methods: IEC 61169, IEC 62037, IEC 60529

Recommendations

INSTALLATION INSTRUCTION

ANM - C0057X
