C1374E | HYPERCELL

Reference : C1374E

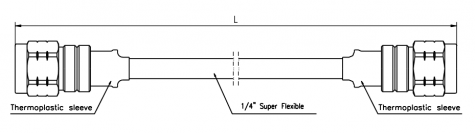

Jumper 1/4SF PE N Male – N Male

General characteristics

Cable:

ACOME 50-1/4SF PE cable

Connector:

N male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.35 KW
Velocity: 83%
Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
 RL (dB)   ATT (dB)  RL (dB) ATT (dB) RL (dB) ATT (dB)
0.2 C2246E 105 -32 0.16 -30 0.25 -26 0.29
0.3 C2374E 115 -32 0.19 -30 0.28 -26 0.32
0.5 C0884E 125 -32 0.22 -30 0.33 -26 0.39
1 C1369E 165 -32 0.30 -30 0.46 -26 0.53
1.5 C1370E 200 -32 0.40 -30 0.61 -26 0.71
2 C1368E 235 -32 0.51 -30 0.76 -26 0.89
2.5 C1371E 270 -32 0.60 -30 0.91 -26 1.08
3 C1372E 305 -32 0.70 -30 1.07 -26 1.25
4 C1373E 375 -32 0.90 -30 1.36 -26 1.61
5 C1374E 450 -32 1.09 -30 1.66 -26 1.96
