C0939E | HYPERCELL

Reference : C0939E

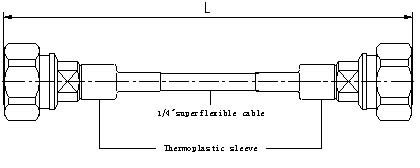

Jumper 1/4SF PE 7/16 Din Male – 7/16 Din Male

General characteristics

Cable:

ACOME 50-1/4SF PE cable

Connector:

7/16 Din male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.35 KW
Velocity: 83%
Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB)  RL (dB)  ATT (dB)
1 C0939E 215 -32 0.30 -30 0.46 -26 0.53
1.5 C0940E 255 -32 0.40 -30 0.61 -26 0.71
2 C0938E 295 -32 0.53 -30 0.76 -26 0.89
2.5 C0941E 330 -32 0.60 -30 0.91 -26 1.10
3 C0937E 365 -32 0.70 -30 1.10 -26 1.26
3.5 C1008E 400 -32 0.79 -30 1.22 -26 1.43
4 C1009E 440 -32 0.90 -30 1.36 -26 1.61
5 C1010E 510 -32 1.09 -30 1.66 -26 1.96
