Product
IC5985
HEMERA

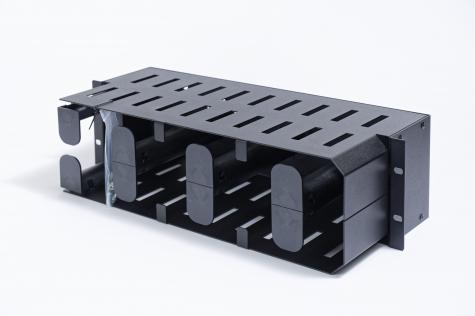

19” 3U horizontal resorber - For optical cross-connect
Benefits
- Reversible resorber (cord input on right or left)
- Lifting capacity of up to 288 x 2 mm cords
- Optimal resorption and adjustment of cords, using cylinders and demi-cylinders
- Depth compatible with ETSI bays
Applications
3U horizontal resorber for managing excessive lengths of cords in a 19" space.
The horizontal resorber is composed of :
- 3U cord management area.
- Cord input on right or left, according to mounting in frame.
- Cylindrical form supporting curve radii of G652 and G657 fibres.
General characteristics
|
Specifications |
Values |
|
Min/max resorption capacity per cord |
0.4 m / 0.9 m |
|
Number of 2 mm cords accepted |
288 |
|
Height |
3U |
|
Dimensions (HxDxW) |
132.5 mm x 195 mm x 483 mm |
|
Weight (1) |
4.0 kg |
|
Colour |
RAL 9005 (black) |
GÉNÉRALES
| CARACTÉRISTIQUES | VALEURS |
| Capacité de résorption min/max par cordon | 0.4 m / 0.9 m |
| Nombre de cordons 2 mm admissibles | 288 |
| Hauteur | 3U |
| Dimensions (HxPxL) | 132.5 mm x 195 mm x 483 mm |
| Poids | 4.0 kg |
| Couleur | RAL 9005 (noir) |
Range
| Description | Reference |
| 3U resorber for optical cross-connect | IC5985 |
