C5926E-L300 | HYPERCELL

Reference : C5926E-L300

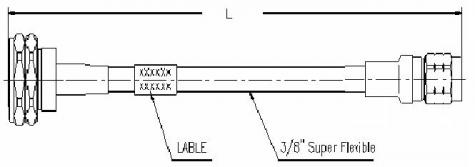

Jumper 3/8SF PE 7/16 Din Male – N Male

General characteristics

Cable:

ACOME 50-3/8SF PE cable

Connector:

7/16 Din male / N male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL
Material and Finish of Connector Body: Copper alloy - plated brass
Material and Finish of Coupling Nut: Nickel - plated brass
Material and Finish of Inner Conductor: Silver - plated bronze
Coupling Waterproof: Silicone Rubber O-ring
Coupling Torque: N interface 2.5 N.m Max.
Din interface 30 N.m Max.
Minimum Bending Radius: 25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529















ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.51 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
2 C5926E-L200 415 -32 0.39 -30 0.59 -26 0.70
3 C5926E-L300 545 -32 0.53 -30 0.80 -26 0.95
5 C5926E-L500 800 -32 0.81 -30 1.22 -26 1.45
