Product

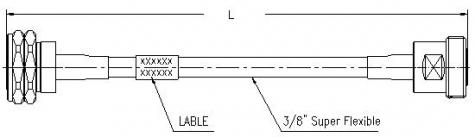

General characteristics
|
Cable: |
ACOME 50-3/8SF PE cable |
|
Connector: |
7/16 Din male / 7/16 Din female |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.51 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C5925E-L100 | 305 | -32 | 0.25 | -30 | 0.38 | -26 | 0.45 |
| 1.5 | C5925E-L150 | 370 | -32 | 0.33 | -30 | 0.48 | -26 | 0.58 |
| 2 | C5925E-L200 | 435 | -32 | 0.38 | -30 | 0.59 | -26 | 0.70 |
| 2.5 | C5925E-L250 | 500 | -32 | 0.46 | -30 | 0.70 | -26 | 0.83 |
| 3 | C5925E-L300 | 565 | -32 | 0.53 | -30 | 0.80 | -26 | 0.95 |
| 4 | C5925E-L400 | 685 | -32 | 0.67 | -30 | 1.01 | -26 | 1.20 |
| 5 | C5925E-L500 | 815 | -32 | 0.81 | -30 | 1.22 | -26 | 1.45 |
