C5925E-L400 | HYPERCELL

Reference : C5925E-L400

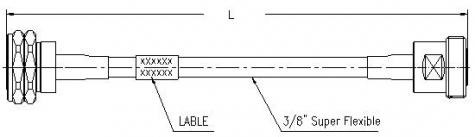

Jumper 3/8SF PE 7/16 Din Male – 7/16 Din Female

General characteristics

Cable:

ACOME 50-3/8SF PE cable

Connector:

7/16 Din male / 7/16 Din female

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.51 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C5925E-L100 305 -32 0.25 -30 0.38 -26 0.45
1.5 C5925E-L150 370 -32 0.33 -30 0.48 -26 0.58
2 C5925E-L200 435 -32 0.38 -30 0.59 -26 0.70
2.5 C5925E-L250 500 -32 0.46 -30 0.70 -26 0.83
3 C5925E-L300 565 -32 0.53 -30 0.80 -26 0.95
4 C5925E-L400 685 -32 0.67 -30 1.01 -26 1.20
5 C5925E-L500 815 -32 0.81 -30 1.22 -26 1.45
