C5924E-L100
HYPERCELL

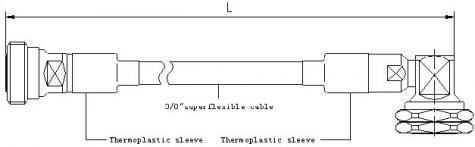

Jumper 3/8SF PE 7/16 Din Female – 7/16 Din Male Elbow

General characteristics

Cable:

ACOME 50-3/8SF PE cable

Connector:

7/16 Din female / 7/16 Din male elbow

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.51 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -145 dBc
IM3 at 1800MHz ≤ -145 dBc
IM7 at 2100MHz ≤ -145 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C5924E-L100 320 -28 0.25 -26 0.38 -24 0.45
1.8 C5924E-L180 425 -28 0.36 -26 0.55 -24 0.65
2 C5924E-L200 445 -28 0.38 -26 0.59 -24 0.70
2.5 C5924E-L250 515 -28 0.45 -26 0.70 -24 0.83
3 C5924E-L300 575 -28 0.52 -26 0.80 -24 0.95
