C4419E-L150 | HYPERCELL

Reference : C4419E-L150

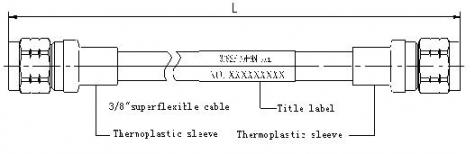

Jumper 3/8SF LSOH N male – N male

General characteristics

Cable:

ACOME 50-3/8SF LSOH cable

Connector:

N male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.51 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.7 C4419E-L70 225 -32 0.21 -30 0.32 -26 0.38
0.8 C4419E-L80 235 -32 0.23 -30 0.35 -26 0.41
1 C4419E-L100 260 -32 0.25 -30 0.38 -26 0.45
1.5 C4419E-L150 325 -32 0.33 -30 0.48 -26 0.58
2 C4419E-L200 390 -32 0.38 -30 0.59 -26 0.70
2.5 C4419E-L250 450 -32 0.46 -30 0.70 -26 0.83
3 C4419E-L300 515 -32 0.53 -30 0.80 -26 0.95
4 C4419E-L400 640 -32 0.67 -30 1.01 -26 1.20
5 C4419E-L500 770 -32 0.81 -30 1.22 -26 1.45
