C0722E | HYPERCELL

Reference : C0722E
Jumper 1/2F PE 7/16 Din Male – N Female

General characteristics

Cable:

ACOME 50-1/2F PE cable

Connector:

7/16 Din male / N male solder

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

N interface

2.5 N.m Max.

Din interface 30 N.m Max.

Minimum Bending Radius:

70 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.81 KW
Velocity: 87%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

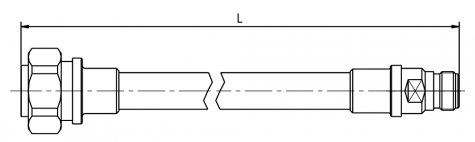

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C0715E 375 -32 0.18 -30 0.26 -26 0.30
2 C0768E 595 -32 0.26 -30 0.38 -26 0.44
3 C0722E 815 -32 0.33 -30 0.49 -26 0.57
5

C0729E

1255 -32 0.46 -30 0.71 -26 0.84
