Product
General characteristics
|
Cable: |
ACOME 50-1/2F PE cable |
|
Connector: |
7/16 Din male / N male solder |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
|
Coupling Torque: |
N interface |
2.5 N.m Max. |
| Din interface | 30 N.m Max. | |
|
Minimum Bending Radius: |
70 mm |
|
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.81 KW | |
| Velocity: | 87% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range

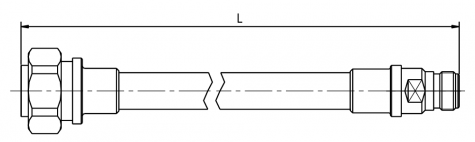

| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C0715E | 375 | -32 | 0.18 | -30 | 0.26 | -26 | 0.30 |
| 2 | C0768E | 595 | -32 | 0.26 | -30 | 0.38 | -26 | 0.44 |
| 3 | C0722E | 815 | -32 | 0.33 | -30 | 0.49 | -26 | 0.57 |
| 5 |
C0729E |
1255 | -32 | 0.46 | -30 | 0.71 | -26 | 0.84 |
