C0764E
HYPERCELL

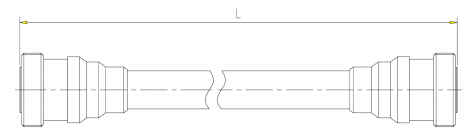

Jumper 1/2F PE 7/16 Din Female - 7/16 Din Female

General characteristics

Cable:

ACOME 50-1/2F PE cable

Connector:

7/16 Din female

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

70 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.81 KW
Velocity: 87%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C0760E 390 -32 0.18 -30 0.26 -26 0.30
1.5 C0761E 505 -32 0.22 -30 0.32 -26 0.37
2 C0762E 615 -32 0.26 -30 0.38 -26 0.44
2.5 C0763E 730 -32 0.28 -30 0.43 -26 0.51
3 C0764E 840 -32 0.33 -30 0.49 -26 0.57
4 C0765E 1060 -32 0.39 -30 0.61 -26 0.71
5 C0766E 1280 -32 0.46 -30 0.71 -26 0.84
