C2440E-L400
HYPERCELL

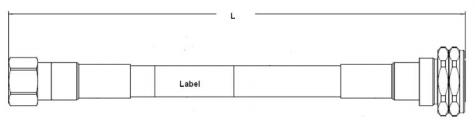

Jumper 1/2F PE 4.3-10 Male - 7/16 Din Male

General characteristics

Cable:

ACOME 50-1/2F PE cable

Connector:

4.3-10 Male / 7/16 Din male

Assembly:

Inner and outer contact 100% soldered



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

Din interface

30 N.m Max.
4.3-10 interface 8 N.m Max.

Minimum Bending Radius:

70 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.81 KW
Velocity: 87%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -161 dBc
IM3 at 1800MHz ≤ -161 dBc
IM7 at 2100MHz ≤ -161 dBc



Range

Length (m) Product number Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C2440E-L50 -26 0.18 -26 0.24 -26 0.27
1 C2440E-L100 -26 0.22 -26 0.29 -26 0.34
1.5 C2440E-L150 -26 0.25 -26 0.35 -26 0.41
2 C2440E-L200 -26 0.29 -26 0.40 -26 0.47
2.5 C2440E-L250 -26 0.33 -26 0.46 -26 0.54
3 C2440E-L300 -26 0.36 -26 0.51 -26 0.61
3.5 C2440E-L350 -26 0.40 -26 0.57 -26 0.67
4 C2440E-L400 -26 0.44 -26 0.62 -26 0.74
4.5 C2440E-L450 -26 0.47 -26 0.68 -26 0.81
5 C2440E-L500 -26 0.51 -26 0.73 -26 0.87
6 C2440E-L600 -26 0.58 -26 0.85 -26 1.01
7 C2440E-L700 -26 0.65 -26 0.96 -26 1.14
8 C2440E-L800 -26 0.73 -26 1.08 -26 1.27
9 C2440E-L900 -26 0.80 -26 1.18 -26 1.41
10 C2440E-L1000 -26 0.87 -26 1.29 -26 1.54
15 C2440E-L1500 -26 1.29 -26 1.88 -26 2.23
20 C2440E-L2000 -26 1.66 -26 2.44 -24 2.88
25 C2440E-L2500 -26 2.05 -26 3.02 -24 3.59
30 C2440E-L3000 -26 2.42 -26 3.60 -24 4.25
