General characteristics
|
Cable: |
ACOME 50-1/2F LSOH cable |
|
Connector: |
N male |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
2.5 N.m Max. |
|
Minimum Bending Radius: |
70 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-40°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.81 KW | |
| Velocity: | 87% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range

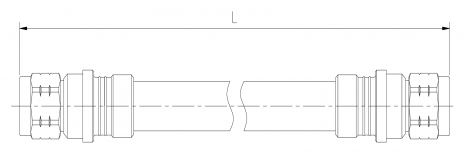

| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C1484E | 395 | -32 | 0.19 | -30 | 0.29 | -26 | 0.34 |
| 1.5 | C1485E | 522 | -32 | 0.23 | -30 | 0.35 | -26 | 0.41 |
| 2 | C0978E | 650 | -32 | 0.27 | -30 | 0.40 | -26 | 0.48 |
| 2.5 | C1486E | 780 | -32 | 0.30 | -30 | 0.46 | -26 | 0.54 |
| 3 | C0979E | 910 | -32 | 0.34 | -30 | 0.52 | -26 | 0.61 |
| 4 | C1487E | 1165 | -32 | 0.41 | -30 | 0.63 | -26 | 0.74 |
| 5 | C1488E | 1420 | -32 | 0.48 | -30 | 0.73 | -26 | 0.88 |
| 8 | C1489E | 2180 | -30 | 0.70 | -28 | 1.08 | -24 | 1.28 |
| 50.1 | C1495E | 12800 | -26 | 3.77 | -24 | 5.79 | -24 | 6.90 |
