HYPERCELL

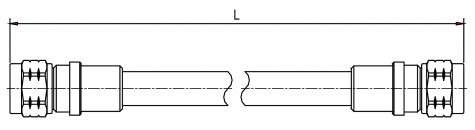

Jumper 1/2SF PE N Male – N Male

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

N male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.2 C0992E 160 -32 0.15 -30 0.22 -26 0.25
0.5 C0704E 217 -32 0.17 -30 0.26 -26 0.31
1 C0024E 300 -32 0.21 -30 0.33 -26 0.37
1.5 C0025E 390 -32 0.26 -30 0.40 -26 0.47
2 C0026E 480 -32 0.33 -30 0.48 -26 0.57
2.5 C0027E 560 -32 0.38 -30 0.57 -26 0.67
3 C0028E 650 -32 0.43 -30 0.66 -26 0.78
4 C1453E 830 -32 0.56 -30 0.86 -26 1.01
5 C0930E 1000 -32 0.66 -30 1.03 -26 1.22
6 C1419E 1170 -32 0.78 -30 1.19 -26 1.42
10 C1437E 1850 -30 1.22 -28 1.84 -24 2.19
