Product
General characteristics
|
Cable: |
ACOME 50-1/2SF PE cable |
|
Connector: |
7/16 Din male / N male |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
|
Coupling Torque: |
N interface |
2.5 N.m Max. |
| Din interface | 30 N.m Max. | |
|
Minimum Bending Radius: |
25 mm |
|
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.52 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range

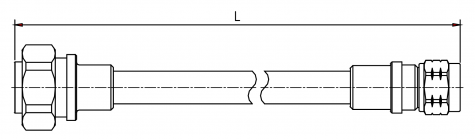

| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 0.5 | C2262E | 230 | -32 | 0.16 | -30 | 0.24 | -26 | 0.29 |
| 1 | C0311E | 313 | -32 | 0.21 | -30 | 0.33 | -26 | 0.37 |
| 1.5 | C0293E | 400 | -32 | 0.26 | -30 | 0.40 | -26 | 0.47 |
| 2 | C0294E | 483 | -32 | 0.33 | -30 | 0.48 | -26 | 0.57 |
| 3 | C0295E | 650 | -32 | 0.43 | -30 | 0.66 | -26 | 0.78 |
| 4 | C1456E | 820 | -32 | 0.55 | -30 | 0.84 | -26 | 1.00 |
| 5 | C0906E | 987 | -32 | 0.65 | -30 | 1.01 | -26 | 1.20 |
| 6 | C2048E | 1160 | -32 | 0.77 | -30 | 1.19 | -26 | 1.41 |
| 7 | C2049E | 1325 | -30 | 0.88 | -28 | 1.36 | -24 | 1.61 |
| 8 | C2050E | 1495 | -30 | 0.99 | -28 | 1.52 | -24 | 1.81 |
| 10 | C1538E | 1830 | -30 | 1.22 | -28 | 1.84 | -24 | 2.19 |
