HYPERCELL

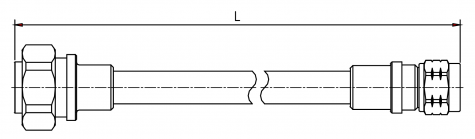

Jumper 1/2SF PE 7/16 Din Male - N Male

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

7/16 Din male / N male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

N interface

2.5 N.m Max.
Din interface 30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C2262E 230 -32 0.16 -30 0.24 -26 0.29
1 C0311E 313 -32 0.21 -30 0.33 -26 0.37
1.5 C0293E 400 -32 0.26 -30 0.40 -26 0.47
2 C0294E 483 -32 0.33 -30 0.48 -26 0.57
3 C0295E 650 -32 0.43 -30 0.66 -26 0.78
4 C1456E 820 -32 0.55 -30 0.84 -26 1.00
5 C0906E 987 -32 0.65 -30 1.01 -26 1.20
6 C2048E 1160 -32 0.77 -30 1.19 -26 1.41
7 C2049E 1325 -30 0.88 -28 1.36 -24 1.61
8 C2050E 1495 -30 0.99 -28 1.52 -24 1.81
10 C1538E 1830 -30 1.22 -28 1.84 -24 2.19
