C1446E | HYPERCELL

Reference : C1446E
Jumper 1/2SF PE 7/16 Din Male – N Male Elbow

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

7/16 Din male / N male elbow

Assembly:

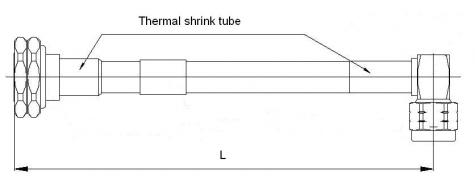

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

N interface

2.5 N.m Max.
Din interface 30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -145 dBc
IM3 at 1800MHz ≤ -145 dBc
IM7 at 2100MHz ≤ -145 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C1447E 390 -28 0.22 -26 0.34 -24 0.41
2 C1448E 555 -28 0.33 -26 0.51 -24 0.61
3 C0970E 730 -28 0.44 -26 0.68 -24 0.81
4 C1449E 900 -28 0.55 -26 0.85 -24 1.01
5 C1446E 1070 -28 0.66 -26 1.02 -24 1.22
