photo produit ACOME C0961E

C1342E
HYPERCELL

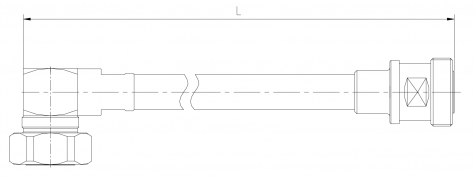

Jumper 1/2SF PE 7/16 Din Male Elbow– 7/16 Din Female

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

7/16 Din male elbow / 7/16 Din female

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -150 dBc
IM3 at 1800MHz ≤ -150 dBc
IM7 at 2100MHz ≤ -150 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C0961E 340 -28 0.17 -26 0.25 -24 0.30
1.5 C0972E 515 -28 0.29 -26 0.43 -24 0.49
2 C0894E 595 -28 0.33 -26 0.51 -24 0.61
2.5 C1320E 680 -28 0.39 -26 0.60 -24 0.72
3 C0893E 765 -28 0.44 -26 0.68 -24 0.81
4 C1537E 935 -28 0.56 -26 0.85 -24 1.01
5 C1342E 1110 -28 0.66 -26 1.02 -24 1.21
10 C2137E 1960 -28 1.22 -26 1.87 -24 2.22
