C0022E | HYPERCELL

Reference : C0022E
Jumper 1/2SF PE 7/16 Din Male - 7/16 Din Male

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

7/16 Din male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

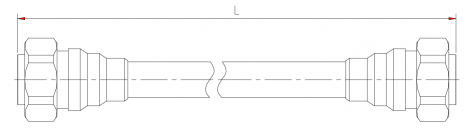

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C0268E 270 -32 0.15 -30 0.23 -26 0.27
0.7 C1353E 295 -32 0.20 -30 0.30 -26 0.35
1 C0021E 350 -32 0.21 -30 0.33 -26 0.37
1.5 C0016E 440 -32 0.26 -30 0.40 -26 0.47
2 C0022E 520 -32 0.33 -30 0.48 -26 0.57
2.5 C0023E 605 -32 0.38 -30 0.57 -26 0.67
3 C0018E 695 -32 0.43 -30 0.66 -26 0.78
3.5 C1497E 770 -32 0.50 -30 0.77 -26 0.91
4 C0246E 860 -32 0.54 -30 0.82 -26 0.97
4.5 C1542E 935 -32 0.61 -30 0.94 -26 1.12
5 C0248E 1025 -32 0.66 -30 0.99 -26 1.16
6 C1375E 1195 -32 0.78 -30 1.20 -26 1.40
7 C1530E 1367 -30 0.89 -28 1.36 -24 1.61
8 C1531E 1535 -30 0.99 -28 1.53 -24 1.81
9 C1552E 1705 -30 1.10 -28 1.69 -24 2.02
10 C1407E 1875 -30 1.22 -28 1.84 -24 2.19
12 C1491E 2210 -30 1.43 -28 2.20 -24 2.62
15 C2673E 2720 -30 1.77 -28 2.72 -24 3.25
