C1435E | HYPERCELL

Reference : C1435E

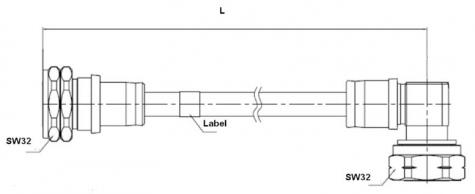

Jumper 1/2SF PE 7/16 Din Male – 7/16 Din Male Elbow

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

7/16 Din male / 7/16 Din male elbow

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -150 dBc
IM3 at 1800MHz ≤ -150 dBc
IM7 at 2100MHz ≤ -150 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C1492E 346 -28 0.17 -26 0.26 -24 0.31
1 C0256E 430 -28 0.22 -26 0.34 -24 0.41
1.5 C0698E 515 -28 0.28 -26 0.43 -24 0.51
2 C0699E 605 -28 0.33 -26 0.51 -24 0.61
2.5 C0730E 685 -28 0.39 -26 0.60 -24 0.71
3 C0731E 770 -28 0.44 -26 0.68 -24 0.81
3.5 C1435E 855 -28 0.51 -26 0.75 -24 0.90
4 C0732E 940 -28 0.54 -26 0.85 -24 1.01
5 C0733E 1110 -28 0.66 -26 1.02 -24 1.21
6 C1490E 1280 -28 0.78 -26 1.19 -24 1.42
7 C1532E 1450 -28 0.88 -26 1.36 -24 1.62
8 C1533E 1615 -28 0.99 -26 1.53 -24 1.82
10 C0903E 1960 -28 1.22 -26 1.87 -24 2.22
