Product
C1589E-L1000
HYPERCELL
Jumper 1/2SF PE 4.3-10 Male – 4.3-10 Male
General characteristics
|
Cable: |
ACOME 50-1/2SF PE cable |
|
Connector: |
Screw type 4.3-10 male |
|
Assembly: |
Inner and outer contact 100% soldered and with molding |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
8 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169,IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.5 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -161 dBc |
| IM3 at 1800MHz | ≤ -161 dBc | |
| IM7 at 2100MHz | ≤ -161 dBc | |
Range

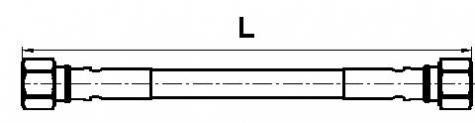

| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 0.5 | C1589E-L50 | 155 | -32 | 0.26 | -30 | 0.29 | -26 | 0.31 |
| 0.7 | C1589E-L70 | 185 | -32 | 0.28 | -30 | 0.32 | -26 | 0.36 |
| 1 | C1589E-L100 | 235 | -32 | 0.31 | -30 | 0.37 | -26 | 0.40 |
| 1.5 | C1589E-L150 | 325 | -32 | 0.36 | -30 | 0.45 | -26 | 0.50 |
| 2 | C1589E-L200 | 410 | -32 | 0.42 | -30 | 0.54 | -26 | 0.60 |
| 2.5 | C1589E-L250 | 495 | -32 | 0.47 | -30 | 0.62 | -26 | 0.70 |
| 3 | C1589E-L300 | 580 | -32 | 0.53 | -30 | 0.71 | -26 | 0.81 |
| 4 | C1589E-L400 | 750 | -32 | 0.64 | -30 | 0.87 | -26 | 1.05 |
| 5 | C1589E-L500 | 920 | -32 | 0.75 | -30 | 1.05 | -26 | 1.20 |
| 10 | C1589E-L1000 | 1760 | -30 | 1.30 | -28 | 1.90 | -24 | 2.30 |
