photo produit ACOME C1463X

C2416E-L500
HYPERCELL

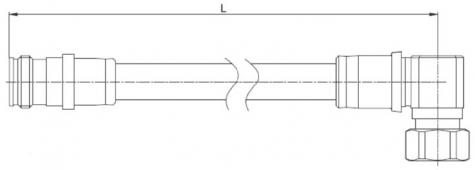

Jumper 1/2SF PE 4.3-10 Male elbow– 4.3-10 female

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

Screw type 4.3-10 male eblow/4.3- 10 female

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

8 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169,IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.5 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -155 dBc
IM3 at 1800MHz ≤ -155 dBc
IM7 at 2100MHz ≤ -155 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C2416E-L100 365 -28 0.31 -26 0.37 -24 0.41
1.5 C2416E-L150 455 -28 0.36 -26 0.45 -24 0.50
2 C2416E-L200 530 -28 0.42 -26 0.54 -24 0.60
2.5 C2416E-L250 610 -28 0.47 -26 0.62 -24 0.70
3 C2416E-L300 695 -28 0.53 -26 0.71 -24 0.81
4 C2416E-L400 865 -28 0.64 -26 0.87 -24 1.05
5 C2416E-L500 1035 -28 0.75 -26 1.05 -24 1.20
