C1306X | HYPERCELL

Reference : C1306X

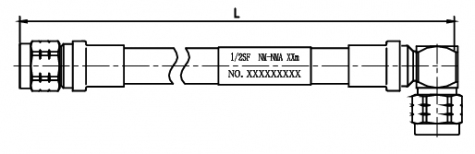

Jumper 1/2SF LSOH N Male – N Male Elbow

General characteristics

Cable:

ACOME 50-1/2SF LSOH cable

Connector:

N male / N male elbow

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -145 dBc
IM3 at 1800MHz ≤ -145 dBc
IM7 at 2100MHz ≤ -145 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C1315X 380 -28 0.23 -26 0.35 -24 0.41
1.5 C1305X 475 -28 0.29 -26 0.44 -24 0.52
2.5 C1306X 665 -28 0.40 -26 0.61 -24 0.72
3.5 C1307X 855 -28 0.51 -26 0.78 -24 0.92
