C0755E | HYPERCELL

Reference : C0755E

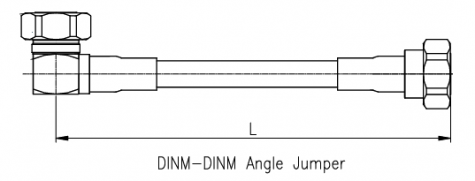

Jumper 1/2SF LSOH 7/16 Din Male Elbow– 7/16 Din Male

General characteristics

Cable:

ACOME 50-1/2SF LSOH cable

Connector:

7/16 Din male elbow / 7/16 Din male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -150 dBc
IM3 at 1800MHz ≤ -150 dBc
IM7 at 2100MHz ≤ -150 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C0754E 455 -28 0.22 -26 0.34 -24 0.41
1.5 C0755E 550 -28 0.28 -26 0.43 -24 0.51
2 C0756E 645 -28 0.33 -26 0.51 -24 0.61
2.5 C0757E 740 -28 0.39 -26 0.60 -24 0.71
3 C0758E 835 -28 0.44 -26 0.68 -24 0.81
3.5 C0759E 930 -28 0.51 -26 0.77 -24 0.91
4 C1588E 1025 -28 0.56 -26 0.85 -24 1.01
5 C1455E 1215 -28 0.66 -26 1.02 -24 1.21
