C2286E-L100 | HYPERCELL

Reference : C2286E-L100

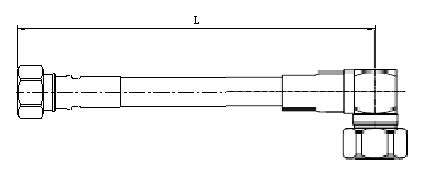

Jumper 1/2SF LSOH 4.3-10 Male – 7/16 Din Male elbow

General characteristics

Cable:

ACOME 50-1/2SF LSOH cable

Connector:

Screw Type 4.3-10 Male /7/16 Din Male elbow

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

Din interface

30 N.m Max.

4.3-10 interface 8 N.m Max

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169,IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.50 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -150 dBc
IM3 at 1800MHz ≤ -150 dBc
IM7 at 2100MHz ≤ -150 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C2286E-L100 390 -28 0.31 -26 0.37 -24 0.41
2 C2286E-L200 575 -28 0.42 -26 0.54 -24 0.60
3 C2286E-L300 770 -28 0.53 -26 0.71 -24 0.81
4 C2286E-L400 955 -28 0.64 -26 0.87 -24 1.05
5 C2286E-L500 1140 -28 0.75 -26 1.05 -24 1.20
