Photo produit acome C0999S

C1044S | HYPERCELL

Reference : C1044S

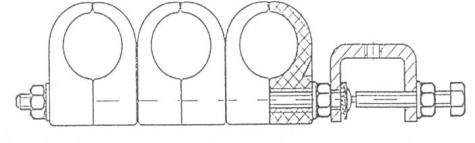

HPL Single Feeder Clamp

General characteristics

Clamp Body:

Transnature polypropylene

Screw and Nut:

Stainless SUS304



MECHANICAL & ENVIRONMENTAL

Color:

Black

Use Temperature Range:

-40 ℃< θ < +70 ℃

RoHS Compliance:

Yes



TYPE
Product number Type Approx. weight (g / p)
C1154S 1 × 1/4F (φ9.5) 155
C1155S 2 × 1/4F (φ9.5) 190
C1156S 3 × 1/4F (φ9.5) 210
C1157S 4 × 1/4F (φ9.5) 240
C1042S 1 × 3/8XF (φ10.0) 150
C1173S 2 × 3/8XF (φ10.0) 180
C1174S 3 × 3/8XF (φ10.0) 210
C1175S 4 × 3/8XF (φ10.0) 240
C1044S 1 × 3/8F (φ10.6) 168
C1176S 2 × 3/8F (φ10.6) 187
C1177S 3 × 3/8F (φ10.6) 206
C1178S 4 ×3/8F (φ10.6) 225
C0108S 1 × 1/2F (φ16) 170
C0109S 2 × 1/2F (φ16) 190
C0110S 3 × 1/2F (φ16) 220
C0781S 4 × 1/2F (φ16) 240
C0111S 1 × 7/8F (φ27) 200
C0112S 2 × 7/8F (φ27) 250
C0113S 3 × 7/8F (φ27) 310
C0655S 4 × 7/8F (φ27) 360
C0114S 1 ×1-1/4F (φ39.4) 240
C0115S 2 ×1-1/4F (φ39.4) 340
C0116S 3 ×1-1/4F (φ39.4) 430
C0782S 4 ×1-1/4F (φ39.4) 515
C0117S 1 ×1-5/8F (φ50) 280
C0118S 2 ×1-5/8F (φ50) 400
C0119S 3 ×1-5/8F (φ50) 505
C0783S 4 ×1-5/8F (φ50) 620
