Product

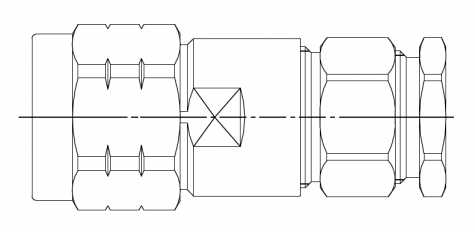

General characteristics
|
Inner Conductor: |
Silver - plated bronze |
|
Inner Contact: |
Silver - plated brass |
|
Dielectric: |
PTFE |
|
Body: |
Copper alloy - plated brass |
|
Clamping and Coupling Nut: |
Nickel - plated brass |
|
Clamping Nut Waterproof: |
Silicone O-ring |
|
Coupling Waterproof: |
Silicone gasket |
MECHANICAL & ENVIRONMENTAL
|
Interface Durability: |
500 cycles |
|
|
Temperature: |
Operating |
-40°C / +85°C |
| Installation | -25°C / +55°C | |
| Storage | -50°C / +85°C | |
|
Weight: |
60 g |
|
|
Waterproof Index: |
IP67 |
|
| Force: | 400N | |
| RoHS Compliance: | Yes | |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Band: | DC ~ 4GHz | |
| Return Loss: | DC~1GHz | ≤ -26.5 dB |
| 1~2GHz | ≤ -21 dB | |
| 2~4GHz | ≤ -18 dB | |
| Voltage Test (at sea level): | 2000 V eff / 50 Hz | |
| Operating Voltage (at sea level): | 900 V eff / 50 Hz | |
| Insulation Resistance: | ≥5000 MΩ | |
| Contact Resistance: | Inner contact: | ≤ 1.5 mΩ |
| Outer contact: | ≤ 1.0 mΩ | |
Range
Compatibility with ACOME HPL 50 -3/8XF
M5437, M5435, M5362,M5333,M5452
Test Methods: IEC 61169-16, IEC 62037-3, IEC 60529
Recommendations
INSTALLATION
ANM - C0045E
