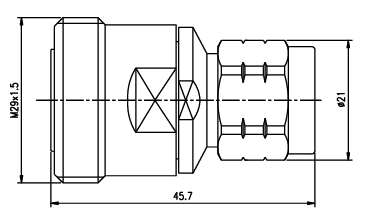

Product
General characteristics
|
Body: |
Copper alloy-plated brass |
|
Coupling Nut: |
Nickel-plated brass |
|
Insulator: |
PTFE |
|
Inner Conductor: |
Silver-plated bronze |
|
Coupling Waterproof: |
Silicone O-ring |
MECHANICAL & ENVIRONMENTAL
| Coupling Torque: | N interface | 2.5 N.m |
| Din interface | 30 N.m | |
| Weight: | 102 g | |
| Operating Temperature: | -40 ℃ ~ +85 ℃ | |
| RoHS Compliance: | Yes | |
| Test Standard: | IEC 61169 | |
ELECTRICAL
| Impedance: | 50 ± 1 Ω | ||
| Frequency Band: | DC ~ 3 GHz | ||
| Insulation Resistance: | ≥ 5000 Mohm | ||
| Contact Resistance: | N interface | Inner conductor | ≤ 1.5 mohm |
| Outer conductor | ≤ 1.0 mohm | ||
| Din interface | Inner conductor | ≤ 0.4 mohm | |
| Outer conductor | ≤ 1.5 mohm | ||
| Voltage Test (at sea level): | 2.5 kV eff / 50 Hz | ||
| Operating Voltage (at sea level): | 1.5 kV eff / 50 Hz | ||
| VSWR: | ≤ 1.10 | ||
| Screening Effectiveness: | ≥ 115 dB | ||
