photo produit C0094E

C0094E
HYPERCELL

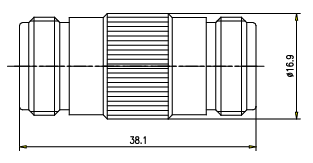

HPL N female / N female adaptor

General characteristics

Body:

Copper alloy-plated brass

Insulator:

PTFE

Inner Conductor:

Silver-plated bronze



MECHANICAL & ENVIRONMENTAL
Coupling Torque: 2.5 N.m
Weight: 44 g
Operating Temperature: -40 ℃ ~ +85 ℃
RoHS Compliance: Yes
Test Standard: IEC 61169



ELECTRICAL
Impedance: 50 ± 1 Ω
Frequency Band: DC ~ 3 GHz
Insulation Resistance: ≥ 5000 Mohm
Contact Resistance: Inner conductor ≤ 1.5 mohm
Outer conductor ≤ 1.0 mohm
Voltage Test (at sea level): 2.5 kV eff / 50 Hz
Operating Voltage (at sea level): 1.5 kV eff / 50 Hz
VSWR: ≤ 1.10
Screening Effectiveness: ≥ 115 dB
