Product
ASTB-60X

C1031E
HYPERCELL

Jumper 1/4SF LSOH N Male – N Female

General characteristics

Cable:

ACOME 50-1/4SF LSOH cable

Connector:

N male / N female

Assembly:

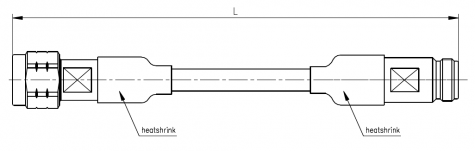

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.35 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C1031X 150 -32 0.23 -30 0.33 -26 0.38
1 C1032X 195 -32 0.32 -30 0.47 -26 0.56
2 C1033X 285 -32 0.55 -30 0.79 -26 0.92
3 C1387X 365 -32 0.76 -30 1.12 -26 1.28
4 C1388X 455 -32 0.96 -30 1.43 -26 1.65
5 C1389X 540 -32 1.15 -30 1.72 -26 1.99
