Product
ASTB-61X

C1311E
HYPERCELL

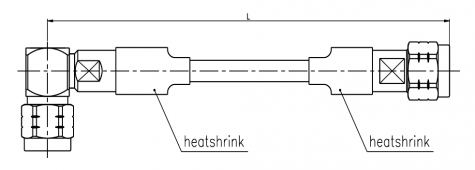

Jumper 1/4SF LSOH N Male Elbow – N Male

General characteristics

Cable:

ACOME 50-1/4SF LSOH cable

Connector:

N male elbow / N male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.35 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -145 dBc
IM3 at 1800MHz ≤ -145 dBc
IM7 at 2100MHz ≤ -145 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C1311E 260 -28 0.32 -26 0.49 -24 0.57
2 C1312E 345 -28 0.55 -26 0.79 -24 0.93
2.5 C1301E 385 -28 0.62 -26 0.94 -24 1.11
3.5 C1302E 470 -28 0.81 -26 1.24 -24 1.46
