B1075A

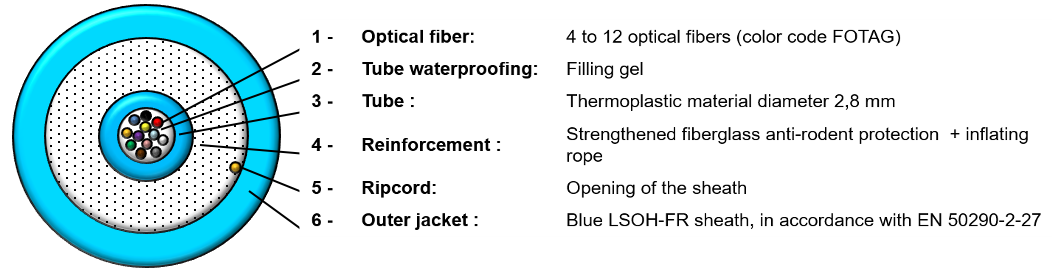

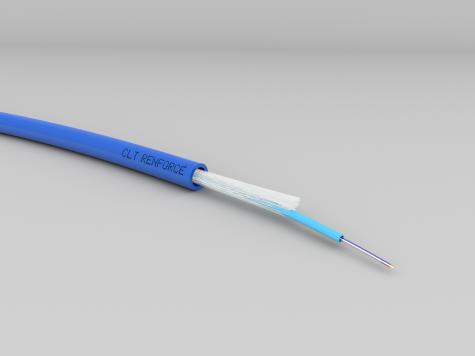

"ACOLAN OPTICAL - CLT REINFORCED ZH "
Benefits
- Flexible inner Tube
- Cable with ripcord
- Reinforced Protection against rodents
- Optimal design to facilitate preparation and access to fibers
Applications
- High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables) and available for all environments (Industrial, Residential and Office Buildings).
- They can be use Indoor or Outdoor
General characteristics
ACOME Protection Index against rodents IPA: ✭✭✭✩✩ = Reinforced Protection
Marking of outer jacket: ACOLAN CLT RFD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm + metric
|
Characteristics |
Value |
||
|
Z1329A |
Z1317A |
||
|
4 to 12FO |
16 to 24FO (bi-tubes) |
||
|
Temperature range |
Transport and storage |
- 40°C to + 70°C |
|
|
At the installation |
-5°C to + 50°C |
||
|
In service |
-20°C to + 60°C |
||
|
Maximum pulling force (N) |
3000 |
||
|
Crush resistance (N/cm) |
300 |
||
|
Minimum bending radius (mm) |
10xD |
||
|
Standard packaging |
2100m drums |
||
|
Nominal sheath thickness (mm) |
1,5 |
||
|
Nominal diameter (mm) |
8,3 |
9,2 |
|
|
Nominal weight (kg/km) |
81 |
94 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
| Bleu | Orange | Vert | Marron | Gris | Blanc | Rouge | Noir | Jaune | Violet | Rose | Turquoise |
Range
| Cable Content | Multimode 50/125 OM2 ACMM50 | Multimode 50/125 OM3 ACMM50 | Multimode 50/125 OM4 ACMM50 | Monomode 9/125*OS2 ACSM2-D METRO |
| 4 fibers | B1072A | B1080A | B1088A | B1096A |
| 6 fibers | B1073A | B1081A | B1089A | B1097A |
| 8 fibers | B1074A | B1082A | B1090A | B1098A |
| 12 fibers | B1075A | B1083A | B1091A | B1099A |
| 16 fibers | B1076A | B1084A | B1092A | B1100A |
| 24 fibers | B1077A | B1085A | B1093A | B1101A |
*9/125 : G652 fibrers
Norms and standards
Cable et fibers : EN 60793 / EN 60794-1
Wiring systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
4 to 24 fibers |
Dca-s2,d2,a2 |
17CLT0002 |
IEC 60332-1, EN 50399 IEC 60754-2 |
Scan the QR code to access declarations of performance on www.acome.fr
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
|
No Fire propagation |
IEC 60332-3-24 (3C)* (4 to 12 fo) |
* Fire tests performed by our own COFRAC accredited fire lab.
Related products
4 à 48 Fibres Optiques
OM2, OM3, OM4, OS2
Gaine polyéthylène noire, Renforcé armé fibre de verre
