Clone of Clone of M5333Z

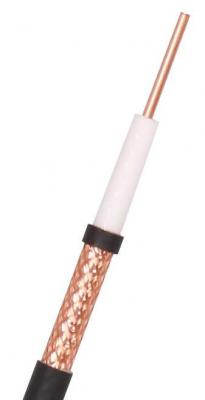

HYPERCELL
General characteristics
|
Inner Conductor: |
Copper - clad Aluminium Diameter: |
2.76 mm |
|
Dielectric: |
Foam Polyethylene Diameter: |
7.3 mm |
|
Outer Conductor: |
Annealed copper tape Copper wire braid Diameter: |
8.0 mm |
|
Jacket: |
Black high fire resistant low smoke zero halogen compound Diameter: |
10.1 mm |
Ink marking: ACOME HYPERCELL COAX LSOH HFR HPL 50-3/8XF EXTRA FLEXIBLE M5333 LOT X lot N° (+ Metric length)
| Bending radius: | Operating | 50 mm – Min |
| Installation | 25 mm – Min | |
| Inst. / Op.Tensile Strength: | 700 / 500 N – Max | |
| Weight: | 109 kg/km | |
Impedance : 50 ± 1.5 Ω
Return loss (jumper L =1m) :
- 1 ~ 1000 MHz ≤ -26.5 dB
- 1000 ~ 2000 MHz ≤ -21 dB
- 2000 ~ 3000 MHz ≤ -18 dB
Capacitance: 78 pF/m
Velocity: 85%
Dielectric constant: 1.38
Screening effectiveness: > 85 dB
Operating frequency: ≤ 12 GHz
Peak power rating: 8.4 kW
Operating voltage: 0.9 kV RMS
Insulation Resistance: > 10000 MΩ.km
DC resistance:
- Inner conductor: ≤ 4.75 Ω/km
- Outer conductor: ≤ 8.30 Ω/km
|
Frequency (MHz) |
Attenuation (dB/100m) @ 20°C Typical |
Power kW @ 40°C-Ambient Temperature Inner conductor: 100°C |
|
10 |
1.16 |
6.15 |
|
30 |
2.05 |
3.53 |
|
100 |
3.80 |
1.91 |
|
200 |
5.55 |
1.25 |
|
300 |
6.75 |
1.09 |
|
450 |
8.40 |
0.89 |
|
900 |
12.25 |
0.62 |
|
1000 |
13.0 |
0.59 |
|
1500 |
16.35 |
0.48 |
|
1800 |
18.20 |
0.43 |
|
2000 |
19.30 |
0.41 |
|
3000 |
24.51 |
0.33 |
|
3500 |
26.82 |
0.29 |
|
5000 |
33.20 |
0.22 |
|
5700 |
35.90 |
0.19 |
|
10000 |
50.80 |
0.12 |
|
11000 |
54.00 |
0.10 |
| Temperature range: | Operating | -40°C / +85°C |
| Installation | -20°C / +60°C | |
| Storage | -70°C / +85°C | |
| Fire resistance: | NFC 32070.2.2 | |
| Smoke toxicity: | IEC 60754-2 / NFC20-454 | |
| Smoke density: | IEC 61034 | |
| Test methods: | IEC 60096-0-1, 61196-1, 60966-1 | |
