PHOTO PRODUIT ACOME R7295A-T500

ACOLAN® COPPER

Reference : R7295A-T500
F/FTP Cat.6a 550 MHz 4P LSOH-FR DRUM 500m - IVORY

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the EA class for the 10GBASE-T applications.
  • They are characterized of up to 550 MHz.
  • They are compatibles with PoE, PoE+, UPoE & 4PPoE (PoE++) applications

See our White Paper on installation conditions on www.acome.com also available on demand.

General characteristics

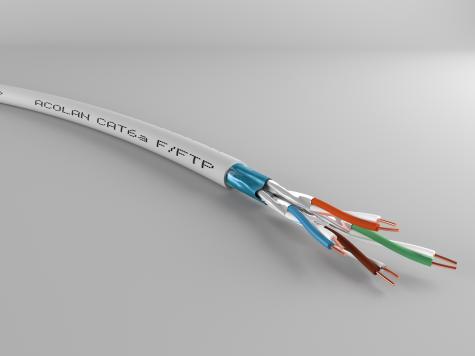

schema coupe R7295A-T1000

  1. Conductor

Solid annealed red copper wire, AWG 23

Foam skin Pe insulation Æ ≤ 1.40 mm



  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Stranding

4 pairs screening assembly

  1. Screen

Pet/Alu foil and tinned drain wire AWG26

  1. External sheath

LSOH-FR: Low Smoke « Zero » Halogen - Flame Retardant



GENERAL

Designation

ACOLAN

Ref.

Colour

Diameter

Weight

Superior calorific capacity (PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

550 FF 4P LSOH-FR *

R7295A

Ivory (RAL 9001)

7.30

53

550

0.153

98



550 FFD 2x4P LSOH-FR



R7296A

Ivory (RAL9001)

7.30 x 15.30

102

1125

0.312

196

*EC verified : in structure 4P and 2x4P

MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 60 mm

Static (installed)

≥ 30 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C

ELETRICAL

Characteristics

Values

Complete conductor resistance



≤ 146.4 Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 Ω

Velocity

nominal

78 %

Coupling attenuation



≥ 70 dB

TYPE 1b

Transfer impedance

At     1 MHz

≤ 30 mΩ / m

GRADE 2

At   10 MHz

≤ 30 mΩ / m

At   30 MHz

≤ 50 mΩ / m

At 100 MHz

≤ 100 mΩ / m

Segregation classification acc. EN 50174-2



‘’c’’

Norms and standards

GENERAL

logos cables de france    logo poe ready     logo ce      EC



Applications
 IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T ;  5GBase-T ; 10GBase –T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
 IEEE 802.5 /  FDDI / ATM / RNIS

Cables
 IEC 61156-5 ed.2 / EN 50288-10-1

Cabling sytem standards
 ISO 11801 2nd ed. / EN 50173-1 / TIA-568.2-D

Cabling system installation standards
 EN 50174

Directive / Regulation
 RoHS 2011/65/UE
 REACH 1907/2006/EC


EUROCLASS

EUROCLASSE DCA - S2 D2 A2



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Dca-s2,d2,a2

IEC 60332-1, EN 50399,

 IEC 60754-2

17FFTP002

Zone de Texte: www.acome.fr

2x4P

17FFTP006



Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1



Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R7295A-T500

Drum KT of 500 m

29 kg

3700223655045

18 drums

529 kg

3700223666898

R7295A-T1000

Drum XL of 1000 m

58 kg

370022366904

4 drums

246 kg

3700223633043

2x4P LSOH-FR

R7296A-T500

Drum XL of 500 m

58 kg

3700223666911

4 drums

238 kg

3700223633050

R7296A-T1000

Drum AC of 1000 m

112 kg

-----------------

4 drums

460 kg

-----------------
