IC2033
HEMERA
Benefits
- Made up of only 2 elements
- Extremely simple assembly: connection without special tools
- Die-cast zinc housing suitable for industrial applications
Applications
- Cat6 connector, class EA, to be assembled on site
- Meets the requirements of class EA according to ISO/IEC 11801 ed.2.2:2011-06, DIN EN 50173-
- 1:2011-09
- Suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and
- HDBaseT
- Connection from AWG 26/7 to 22/7; AWG 26/1 to 22/1 possible
- Single stranded wire, copper conductor diameter from 0.4 to 0.64mm
- Stranded wire, copper conductor diameter from 0.48 to 0.76mm
- Maximum strand diameter 1.6mm
- Sheathing from 5.5 to 8.5mm
- With locking hook
- Variants: T568A, T568B, Industry
General characteristics
|
General information |
|
|
Fields of application |
|
|
|
Industrial Ethernet |
|
Format |
Male connector |
|
Shielding |
Shielded |
|
Transmission technology |
for Copper |
|
Colour |
Metallic |
|
Dimensions |
|
|
Dimensions |

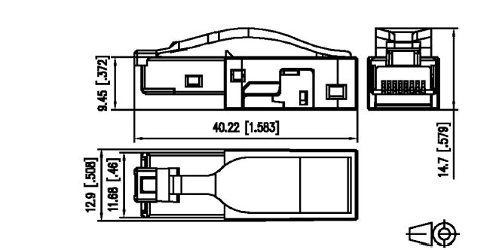

51.32mm x 12.9mm x 14.7mm |
|
Dimensions |
2.02 in. x 0.508 in. x 0.579 in. |
|
Assembly required at site |
Yes |
|
Possibility of labeling |
On housing |
|
Transmission technology properties |
|
|
Category (ISO) |
6 |
|
Class (ISO/IEC) |
EA |
|
Category (TIA) |
6 |
|
Remote Powering |
Yes |
|
PoE |
IEEE 802.3: |
|
PoE plus |
IEEE 802.3: |
|
UPoE |
Yes |
|
HDBaseT |
Yes |
|
Transfer rate up to 10 GBit |
IEEE 802.3: |
|
Connections/Interfaces |
|
|
Interface 1 connection |
IDC-connector |
|
Interface 2 connection |
RJ45 connector |
|
Number of interface ports 2 |
1 |
|
Number of ports equipped with interface 2 |
1 |
|
Number of interface positions/contacts 1 |
8 |
|
Number of interface positions/contacts 2 |
8P/8C |
|
Connection values, single strand (min. – max.) |
|
|
Conductor cross-section, single strand (bare copper) |
0.128mm² - 0.324mm² |
|
Conductor diameter, single strand (bare copper) |
0.409mm – 0.643mm |
|
Conductor diameter, single strand (bare copper) |
0.016 in. – 0.025 in. |
|
Connection values, stranded (min. – max.) |
|
|
Conductor cross-section, stranded (bare copper) |
0.141mm² - 0.355mm² |
|
Conductor diameter, stranded (bare copper) |
0.483mm – 0.762mm |
|
Conductor diameter, stranded (bare copper) |
0.019 in. – 0.03 in. |
|
Strand diameter (min. – max.) |
|
|
Strand diameter (conductor with insulation) |
1.6mm |
|
Strand diameter (conductor with insulation) |
0.063 in. |
|
Cable sheath diameter (min. – max.) |
|
|
Cable sheath diameter |
5.5mm |
|
Cable sheath diameter |
0.217 in. |
|
Cable angle or reach |
180° |
|
Electrical properties |
|
|
Contact resistance |
Max. 20 mOhm |
|
Insulation resistance |
Min. 500 MOhm |
|
Conductor-conductor withstand voltage (secondary) |
Min. 1000 V DC |
|
Conductor-shielding withstand voltage |
Min. 1500 V DC |
|
Mechanical properties |
|
|
Mounting type |
Joinable |
|
Insertion and extraction force |
Max. 30 N |
|
Endurance – Number of connection cycles |
750V |
|
Materials and material properties |
|
|
Material – Box |
GD-Zn (die-cast zinc) |
|
Materials – Housing, surface |
Nickel-copper (Ni-Cu) |
|
Materials – Insulation displacement (IDC) connectors |
CuSn (tin bronze) |
|
Materials – Surface of IDC |
Sn (tin) |
|
Materials – Contact |
CuSn (tin bronze) |
|
Materials – Contact surface |
Ni + Au (nickel + gold) |
|
Materials – Shielding |
Cu-Ni-Zn (Nickel Silver) |
|
Materials – Surface |
Ni (nickel) |
|
REACH – substance (SVHC) |
None |
|
Temperature (min. – max.) |
|
|
Temperature - Storage °C |
-40°C – 70°C |
|
Temperature - Storage °F |
-40°F – 158°F |
|
Temperature - Service °C |
-40°C – 70°C |
|
Temperature - Service °F |
-40°F – 158°F |
|
Particle penetration |
IP2X |
|
Electromagnetic measurement |
E2 |
|
Vibration |
50m/s² |
|
Impact |
250m/s² |
|
The product meets the following standards |
|
|
Universal building cable |
|
|
General requirements |
TIA/EIA 568-B.2-10 |
|
Administrative buildings |
TIA/EIA 568-C |
|
Application-specific communication cabling systems |
|
|
Profinet |
Yes |
|
Classifications |
|
|
ETIM 5.0 |
EC001121 |
|
ETIM 6.0 |
EC001121 |
|
ETIM 7.0 |
EC001121 |
|
Packaging specifications |
|
|
Packaging type |
Pc(s) / box |
Range
|
Name |
Reference |
|

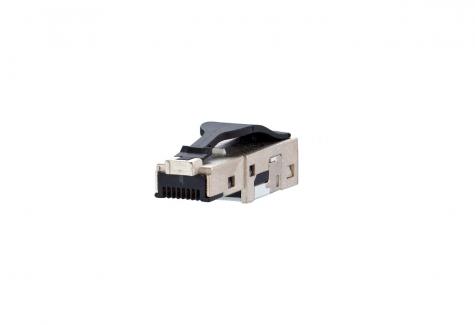

RJ45 connector CAT 6 EA class with locking hook |
IC2033 |
