R7483A-T500 | ACOLAN® COPPER FIREPROTECT

Reference : R7483A-T500
S/FTP Cat.7a Premium 1200 MHz 4P LSOH-FR DRUM 500m - IVORY

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the class FA for the 10 GBASE-T applications.
  • They are characterized of up to 1200 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.

See our White Paper on installation conditions on www.acome.com also available on demand.

General characteristics

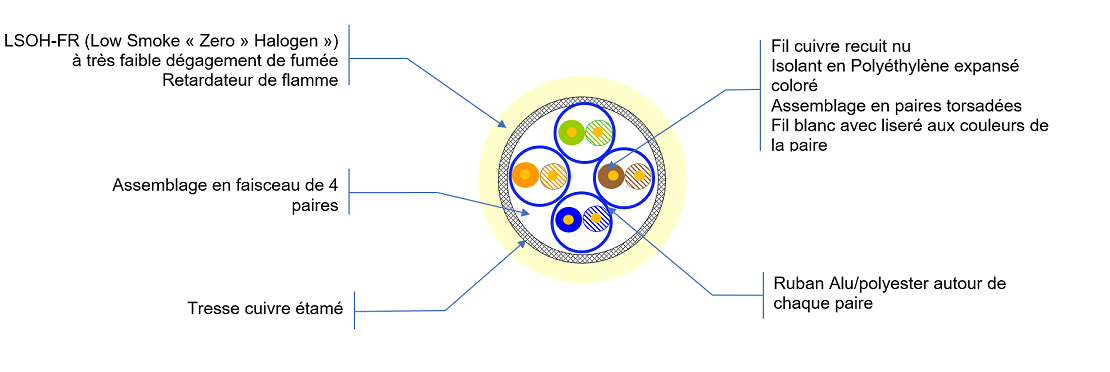

schema coupe word-113-116

  1. Conductor

Solid annealed red copper wire, AWG 23

Foam skin Pe insulation Æ ≤ 1.47 mm



  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Stranding

4 pairs screening assembly

  1. Screen

Tinned copper braid

  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen – Flame Retardant

GENERAL

Designation

ACOLAN FIREPROTECT

Ref.

Colour

Diameter

Weight

Superior

calorificcapacity (PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

1200 SF-P 4P LSOH-FR *

R7483A

Ivory

7.50

55

525

0,146

95

1200 SFD-P 2x4P LSOH-FR *

R7484A

Ivory

7.50 x 15.50

115

1095

0,304

190

*EC verified : structure 4P & 2x4P



MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 60 mm

Static (installed)

≥ 30 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C



ELECTRICAL

            Characteristics

Values

Complete conductor resistance



≤ 140 Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 Ω

Velocity

nominal

78 %

Coupling attenuation



≥ 85 dB

TYPE 1

Transfer impedance

At     1 MHz

≤  8  mΩ / m

GRADE 1

At   10 MHz

≤  8 mΩ / m

At   30 MHz

≤   10 mΩ / m

At 100 MHz

≤   20 mΩ / m

Segregation classification acc. to EN 50174.2



“d”

Norms and standards

GENERAL

   logo poe ready   logo premium   logo ce    EC



Applications
IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T ;  5GBase-T ; 10GBase –T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 /  FDDI / ATM / RNIS

Cables
IEC 61156-5 ed.2 /  EN 50288-9-1

Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1

Cabling system installation standard
EN 50174

Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC



EUROCLASS

EUROCLASSE CCA - S1 D2 A1



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Cca-s1,d2,a1

IEC 60332-1, EN 50399,

 IEC 60754-2

17SFTP008

Zone de Texte: www.acome.fr

2x4P

17SFTP009



Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

No fire propagation

IEC -60332-3-24 / EN 60332-3-24

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1



Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Type

Weight

EAN code

4P LSOH-FR

R7483A-T500

Drum  KT of 500 m

30 kg

3700223666959

18 drums

550 kg

3700223679423

R7483A-T1000

Drum XL of 1000 m

60 kg

3700223666966

4 drums

255 kg

3700223679416

2 x 4P LSOH-FR

R7484A-T500

Drum  XL of  500 m

62 kg

3700223666973

4 drums

260 kg

3700223679638

R7484A-T1000

Drum  AC of 1000 m

125 kg

3700223666980

4 drums

510 kg

3700223679409
